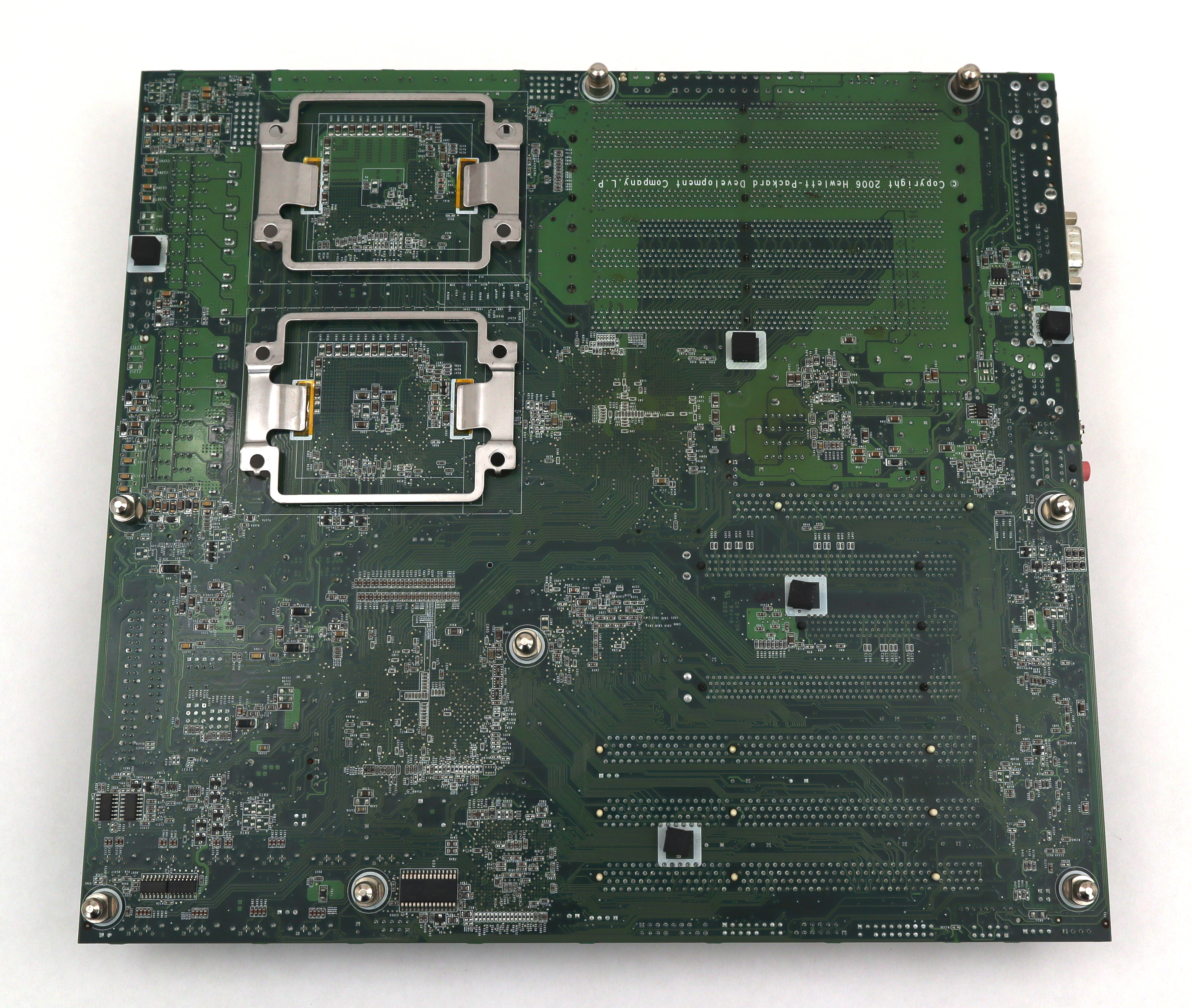

HP XW8400 Workstation Motherboard Dual Xeon 380688-001 417716-001

HP XW8400 Workstation Motherboard Dual Xeon 380688-001 417716-001

Condition Refurbished

Compeve SKU 101000108513

Specifications

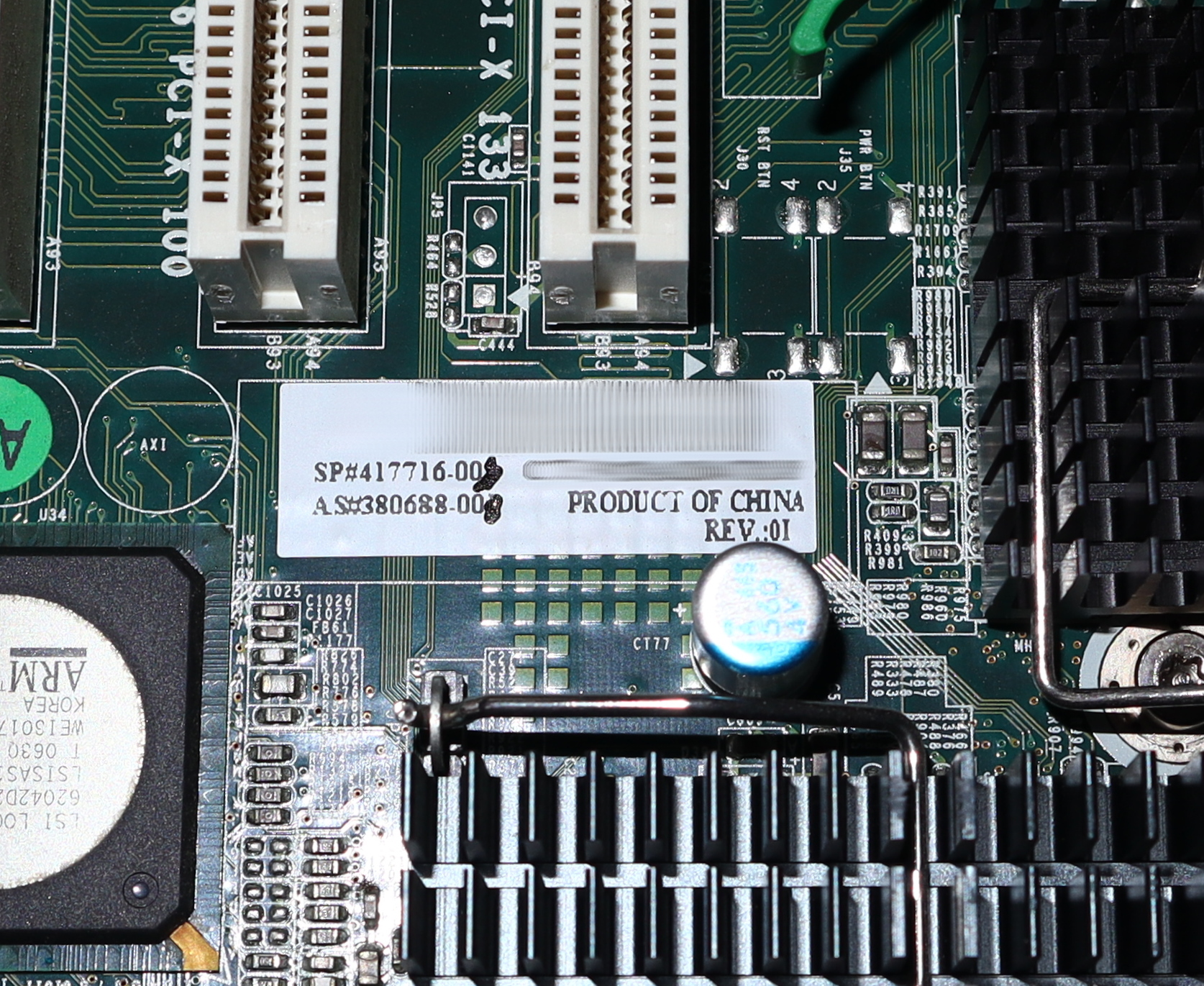

Assy 380688-001
Spare 417716-001

Included: Motherboard. (Memory, Heatsink, Case, Cable visible on picture are not part of the sale)

Supported CPU's  - Single or dual Xeon (1066Mhz FSB, S771)

Memory - 8 slots, up to 32GB DDR-2 667MHz ECC (enabled for 64GB)

Networking - Integrated Broadcom 5752 Gigabit PCIe NIC

Slots:
1 PCI Express (x16) Graphics slot
1 PCI Express (x16 mechanically, x4 electrically)
1 PCI Express (x8 mechanically, x4 electrically)
1 133 MHz PCI-X slot
2 100 MHz PCI-X slots
1 legacy PCI slot

Controllers
SATA 3.0-Gb/s
SATA 3.0-Gb/s NCQ
SAS
LSI Logic Integrated LSISAS1064 Controller

Ports:
2 USB 2.0
1 IEEE 1394
1 microphone in
1 audio out

Internal:
1 USB 2.0

Rear:
5 USB 2.0
1 IEEE 1394
1 serial
1 parallel
2 PS/2
1 RJ-45
1 audio in
1 audio out

Compeve DTP#: mrk001
