PNY Nvidia Quadro NVS810 NVS 810 8xDP 128-Bit 4GB DDR3 PCIe 3.0 VCNVS810DP-PB

Gallery

Description

PNY Nvidia Quadro NVS810 NVS 810 8xDP 128-Bit 4GB DDR3 PCIe 3.0 VCNVS810DP-PB

Condition: Refurbished

SKU: 341500111503

Specification:

The NVIDIA NVS 810 graphics board delivers exceptional display connectivity, cost-effective scalability, and image management capabilities that make it easy to drive any kind of multi-display digital signage setup. It's the first of its kind to offer eight display outputs, combined with the world's most advanced GPU architecture-all in a single-slot form factor. NVS 810 is also ideal for creating dense signage solutions, delivering the uncompromised performance and reliability required to deploy demanding content in mission-critical signage installations.Eight mini-DisplayPort 1.2 connectors on the NVIDIA NVS 810 are capable of driving UHD 4K displays at 60 Hz. Plus, it provides advanced features like multi-streaming and stream cloning that enable extremely efficient cable management and display flexibility in complex installations. Key NVIDIA features like bezel correction, synchronization across 8 displays, Warp & Blend, and Mosaic make digital signage easy.

PN - VCNVS810DP-PB

NVIDIA CUDA® Parallel

Processing Cores 1024 (512 cores per GPU)

Frame Buffer Memory 4 GB DDR3 (2GB per GPU)

Memory Interface 128-bit (64-bit per GPU)

Memory Bandwidth 28.8 GB/s

Max Power Consumption 68 W

Graphics Bus PCI Express 3.0 x16

Display Connectors Mini DP 1.2 (8)

Max Display Support 8x 4096 x 2160 at 30Hz, 4x 4096 x 2160 at 60Hz

Form Factor 4.4” H x 7.8” L Single Slot

Thermal Solution Active

API Supported - OpenCL, OpenGL 4.5, DirectX 12, DirectCompute

Number of Monitors Supported 8

Interfaces/Ports

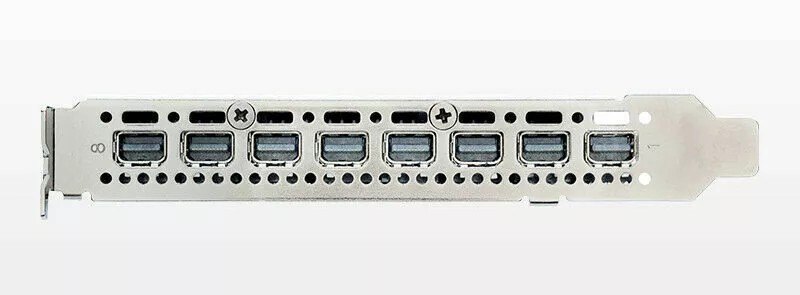

Mini DisplayPort Yes

Number of Mini DisplayPort Outputs 8

Memory

Standard Memory 4 GB

Memory Technology DDR3 SDRAM

Bus Width 128 bit

Processor & Chipset

Chipset Manufacturer NVIDIA

Chipset Line Quadro

Chipset Series NVS

Chipset Model NVS 810

Number of GPUs 2

Physical Characteristics

Slot Space Required Single

Form Factor Plug-in Card

Cooler Type Fan Cooler

Height 4.4"

Length 7.8"
