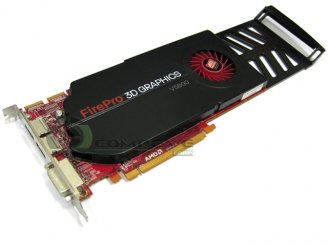

ATI FirePro V5800 1GB GDDR5 PCI-E x16 Professional Video/Graphics Card
HP Part Number: WL050AT

Highlights

• Outstanding performance for the 3D mid-range segment
• 2.5X computing capability over prior generation
• Support both dual-link DVI and DisplayPort connectivity
• ATI Eyefinity capable graphics card
• Drive up to 3 independent 30” displays — 12.3 million pixels
• 1GB GDDR5 memory
• High Dynamic Range (HDR) rendering with 8-bit, 10-bit, and 16-bit per RGB color component support
• Scalable ultra parallel processing architecture with 800 stream processors
• AutoDetect technology instinctively optimizes performance for multi application workflow
• Hardware acceleration of DirectX 11 & OpenGL 3.2 advanced features
• Optimized and certified for many major CAD and DCC applications
• PCI Express 2.0 compliant

GPU

Stream Processors: 800
Memory Interface: 128-bit

Memory

Size/Type: 1GB GDDR5
Bandwidth (GB/s): 64.0

Display Outputs

DisplayPort: 2 Standard
Dual-link DVI: 1
Max Resolution: 2560x1600 @ 60Hz

API/Feature/OS Support

DirectX : 11.0
OpenGL : 3.2
Shader Model: 5.0
ATI Eyefinity Technology Support : Yes
ATI CrossFire Pro Support : Yes
ATI FirePro™ S400 Synchronization Module Support (for Framelock/Genlock): Yes
Stream Computing: Yes (OpenCL 1.0)
OS Support: Microsoft® Windows 7, Windows® XP, Windows Vista, Linux (32-bit or 64-bit)

Thermal/Power/Form Factor

Max Power: ‹75 W
Slot(s): 1
Form Factor: Full Height / Full Length
Support Energy Star 5.0 Compliance: Yes
Bus Interface: PCI Express® 2.0 x16
